Project Overview

Site: A farm in the desert

Date: June 2021

Location: Matrouh Governorate

Industry: Agricultural Irrigation, Fruit Tree Irrigation

Project scope: To develop a new series of solar pumps with the help of Epsivo solar pump drives

Epsivo deliveries: Solar PV module array, pump, Epsivo's EPV series solar pump drive.

Project Introduction

In the desert areas of Egypt, arable land is very scarce and water is almost nowhere to be found, so the development of Egyptian agriculture can be difficult. However, solar energy, which is extremely abundant in Egypt, is a source of energy that can be relied on in the desert areas, so some farmers in Upper Egypt, with the help of the local government, have applied solar power systems to irrigate their farms.

The solution:

In June 2021, Epsivo's Epsivo's EPV series solar pump drive 30kw AC solar water pumping system was successfully installed in a rural suburb of Minya province, Egypt, where the system perfectly solved the problem of water shortage during the irrigation season due to lack of electricity.

Project Products:

Pump:

Rated Power: 30kW

Rated Voltage: 380VAC 3 Phase

Rated Current: 44A

Rated Frequency: 50Hz

Rated RPM： 2920RPM

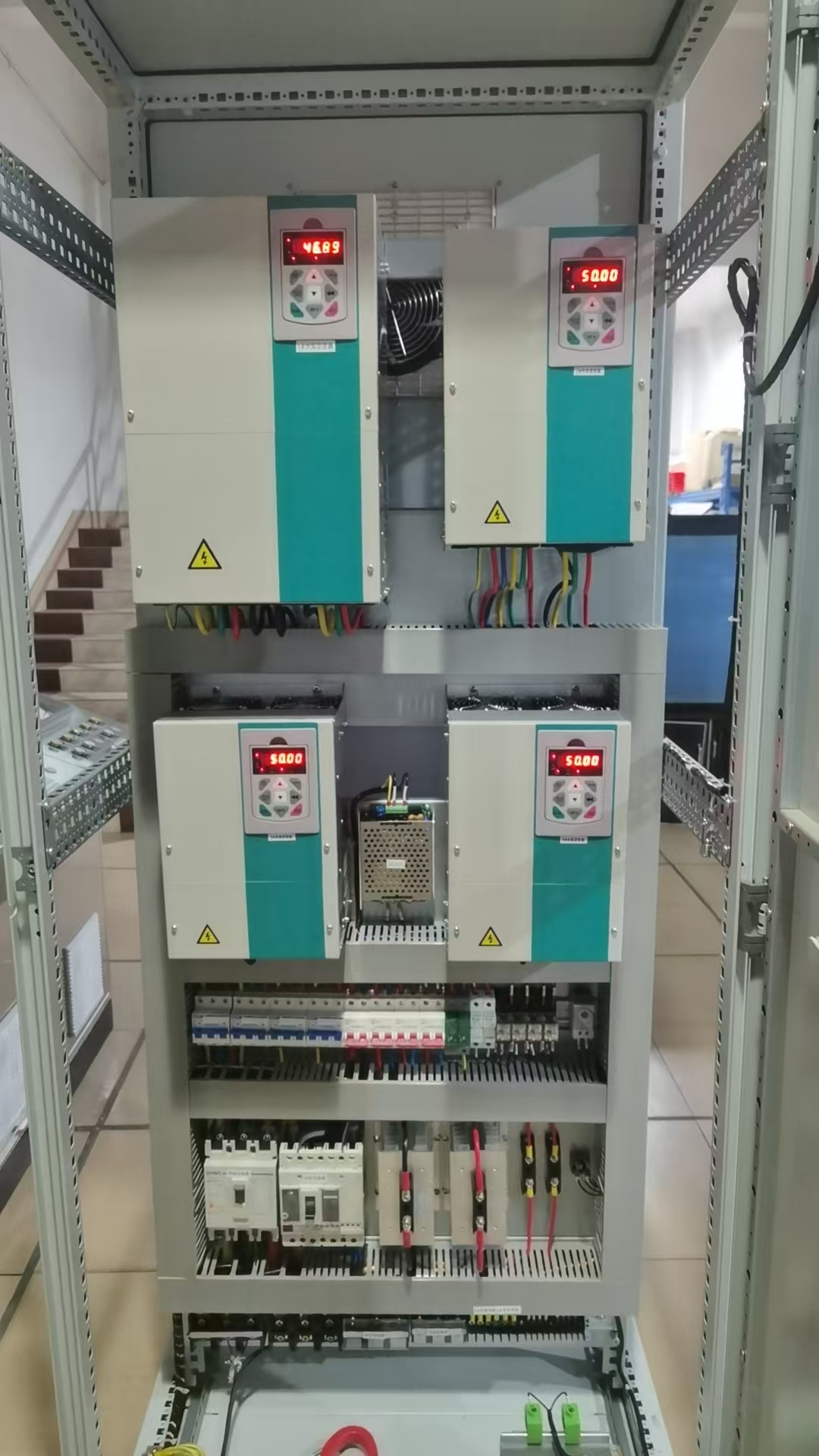

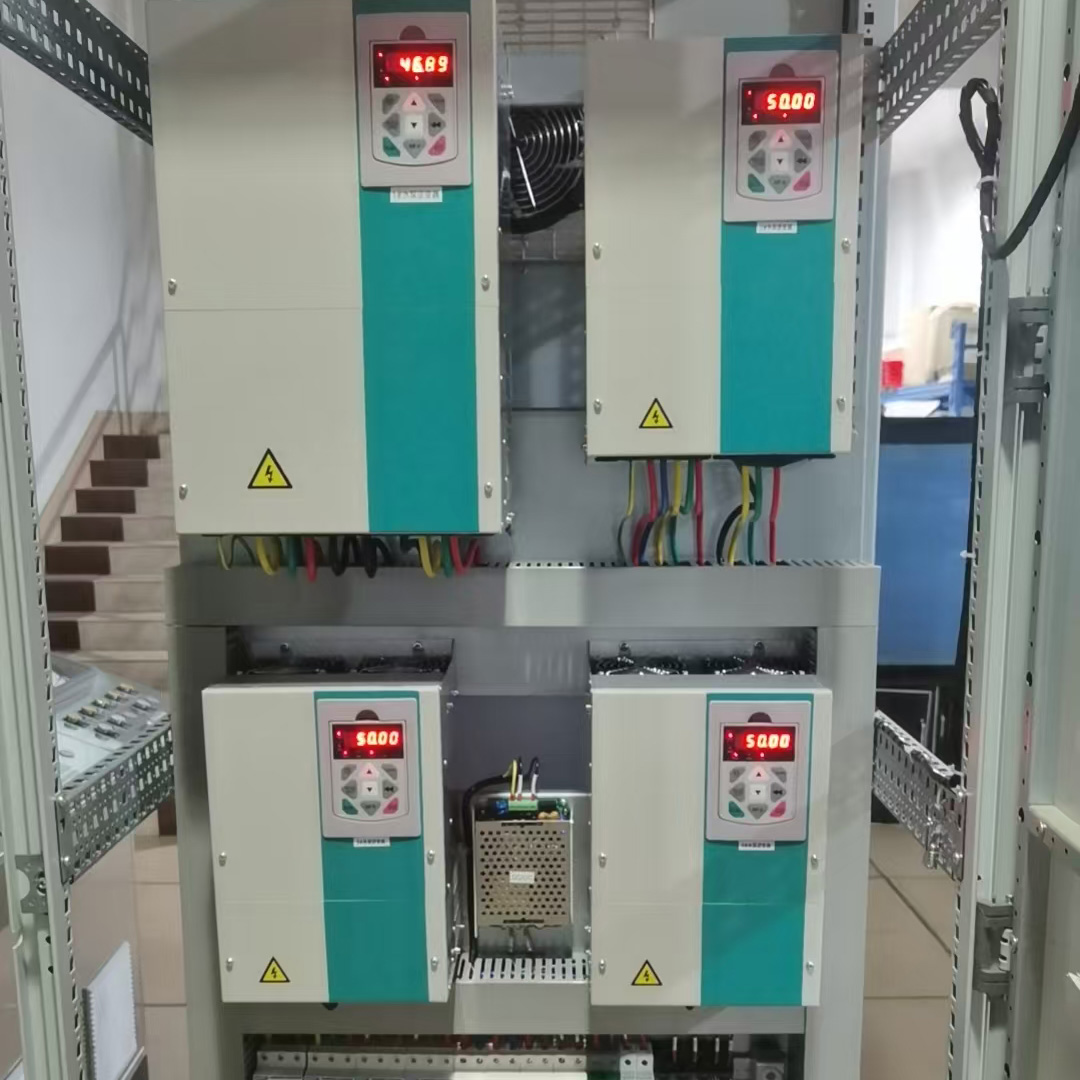

Solar Pump Controller:

Drive Brand /Model：Epsivo / EPV300-4T30G

Rated Power/Current: 30Kw/45A

Rated Output: 380VAC 3 Phase

Input Voltage Range: 250VDC –780VDC

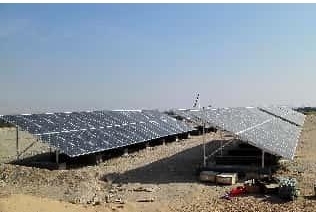

Solar Array:

Solar Array：120Pcs

Total Power：41400W；

Total Voc：702VDC

The result:With the water shortage completely resolved, the project will ease the livelihoods of communities and livestock.

Pictures:
