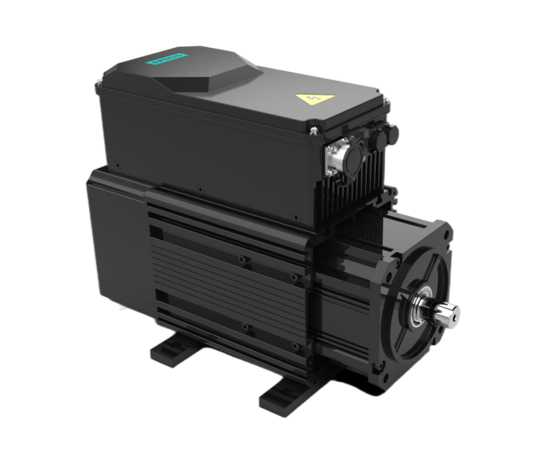

The ES560 servo integrated machine features a compact structure and excellent performance. It offers fast response, low noise, low temperature and high energy efficiency. With an integrated design, it requires no electric control cabinet, is plug-and-play, easy to install, and suitable for various hydraulic equipment.


Technical overview

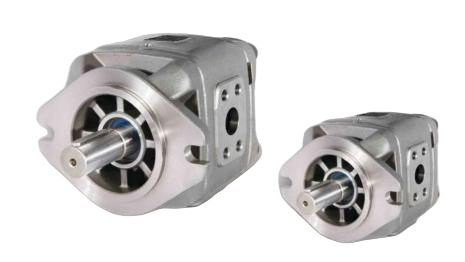

*The duplex pump integrates two individual pump units.
*Featuring one shared inlet port and two independentoutlet port.
*Converting to one shared outlet flange is feasible.*Through modular combination of pump series, multipledisplacement configurations are available to meetvarying operational demands.

EP series synchronous servo motors utilize permanent magnets for excitation, featuring high efficiency and excellent speed regulation, widely used in industry etc.
.

High-efficiency servo drives and Permanent Magnet Synchronous Motor, combined with high volumetric efficiency hydraulic servo pumps, can eliminate energy losses due to overflow at high pressure in the hydraulic system, leading to energy savings of 40% to 80% compared to traditional asynchronous motor hydraulic systems.ES600 electro-hydraulic servo driver enables the output of the system to change automatically, quickly, and accurately following the change of the input. Moreover, the output power is greatly amplified, and the electro-hydraulic Servo System integrates the advantages of both electric and hydraulic.
