Project Overview

Site: A farm
Date: Jan 2022
Location: Sahel Region
Industry: Agricultural Irrigation, Crop irrigation
Project scope: To develop a new series of solar pumps with the help of Epsivo solar pump drives
Epsivo deliveries: Solar PV module array,Epsivo's EPV series solar pump drive, a motor

Epsivo Project Introduction

In recent years, the main driver of Morocco's economic growth has been the agricultural sector. Local government departments also place a high priority on investing in agricultural infrastructure development.

The Challenge:

The problem of energy and water sources is one of the most important issues many countries are faced with. Around more than 30% agricultural pumps are not available to connect with grid electricity due to poor power facilities. And 50% farms cannot get well irrigated because of poor water conservancy infrastructure. Nowadays the cost of diesel is rapidly increasing，so the cost of maintenance on diesel generator pump system is very high. It is urgent and important to find a sustainable way for agricultural irrigation.

The Solution:

Solar powered water pump technology is a very good solution to agricultural irrigation. The system consists of 12kW solar array，7.5kW pump inverter and 7.5kw pump and provides 25m3/h water for irrigation.

Project Products:

Pump:

Rated Power: 7.5kW
Rated Voltage: 380VAC 3 Phase

Rated Current: 17A

Rated Frequency: 50Hz
Rated RPM:2920RPM

Solar Pump Controller:

Drive Brand /Model：Epsivo EPV300-4T7.5G

Rated Power/Current: 7.5kW/17A
Rated Output: 380VAC 3 Phase
Input Voltage Range: 250VDC –780VDC

Solar Array:

Solar Array:44Pcs
Total Power:12000W
Total Voc:720VDC

The Result:

With the water shortage completely resolved, the project will alleviate the livelihoods of communities and livestock.

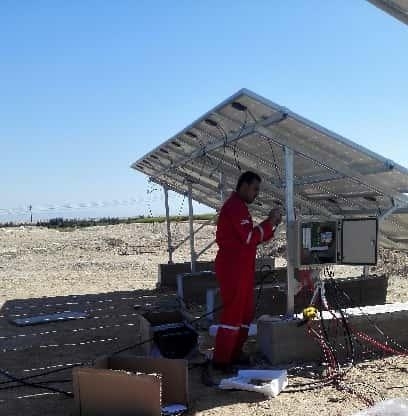

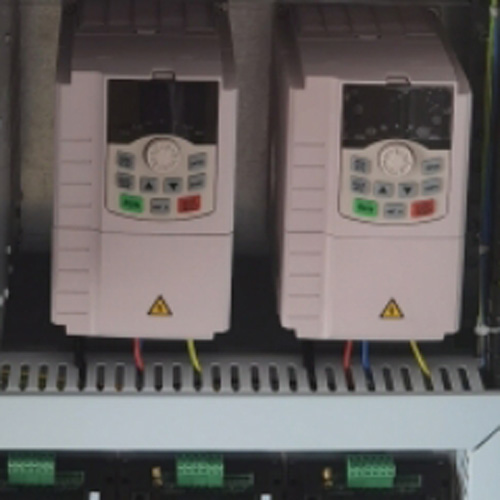

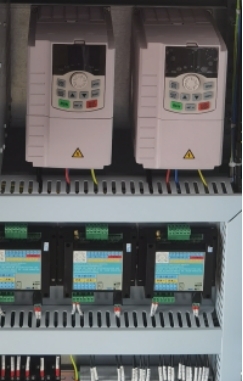

Pictures:
