Project Overview

Site: A farm

Date: Sept 2020

Location: Al-Ahsa, Saudi Arabia
Industry: Agricultural Irrigation, Fruit Tree Irrigation
Project scope: To develop a new series of solar pumps with the help of Epsivo solar pump drives
Epsivo deliveries: Solar PV module array、Epsivo's EPV series solar pump drive, a motor
Epsivo Project Introduction

Epsivo solar and gasoline generator complementary water pumping systems can be the solution for you.
Epsivo The challenge:

The problem of energy and water sources is one of the most important issues many countries are faced with. Around more than 30% agricultural pumps are not available to connect with grid electricity due to poor power facilities. And 50% farms cannot get well irrigated because of poor water conservancy infrastructure.  Nowadays the cost of diesel is rapidly increasing，so the cost of maintenance on diesel generator pump system is very high. It is urgent and important to find a sustainable way for agricultural irrigation.

The solution:

Solar powered water pump technology is a very good solution to agricultural irrigation. The system consists of 106kW solar array，75kW pump inverter and 75kw pump and provides 50m³/h water for irrigation.

Project Products

Pump:

Rated Power:75KW/100HP

Rated current:150A

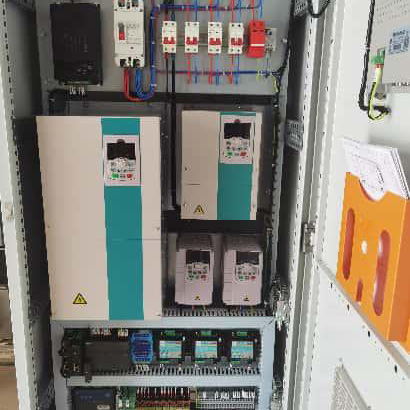

Solar pump inverter:

Model: Epsivo EPV300-4T75G

Rated Power:75KW

Rated output Voltage:AC380V 3 phase

DC input range:350~800V
Solar panel:

Rated power: 280W

Total Power:106,400W

The result:

With the water shortage completely resolved, the project will ease the livelihoods of communities and livestock.
