Views: 27 Author: Site Editor Publish Time: 2025-06-09 Origin: Site
Product features

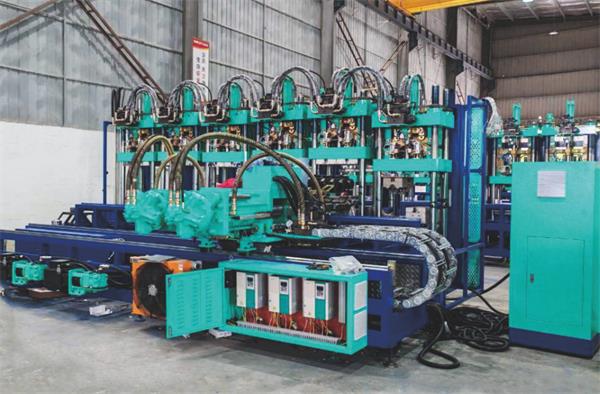

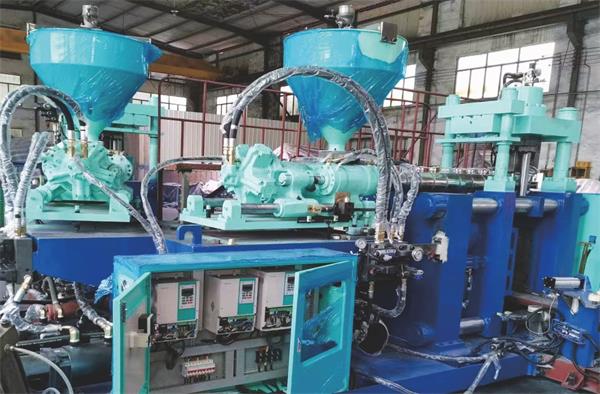

The servo power system for shoe-making machines covers a power range of 15-22kW and various other specifications. The continuously optimized software platform leads the industry in control, enabling the entire system to achieve faster speed, higher precision, and more reliable and stable performance.
14MPa shoe-making machine hydraulic servo complete configuration table
Pressure | Oil pump displacement | Motor | Servo drive | ||
Mpa | cc | Model | Parameter | Model | Parameter |
14 | 50 | EP18-88F17K | 88Nm,1700rpm | ES600T032 | 15KW |
14 | 63 | EP18-105F17K | 105Nm,1700rpm | ES600T037 | 18.5KW |
14 | 63 | EP18-120F17K | 120Nm,1700rpm | ES600T045 | 22KW |
 |  |
