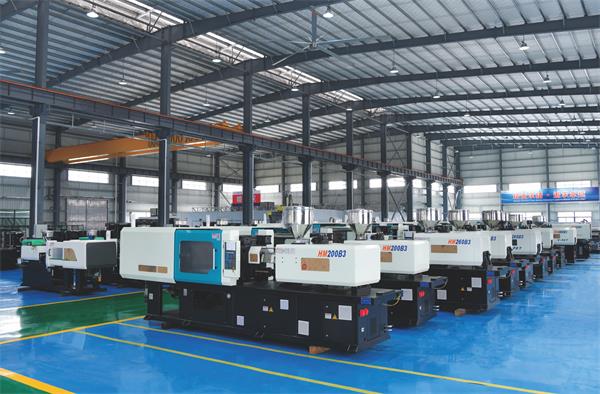

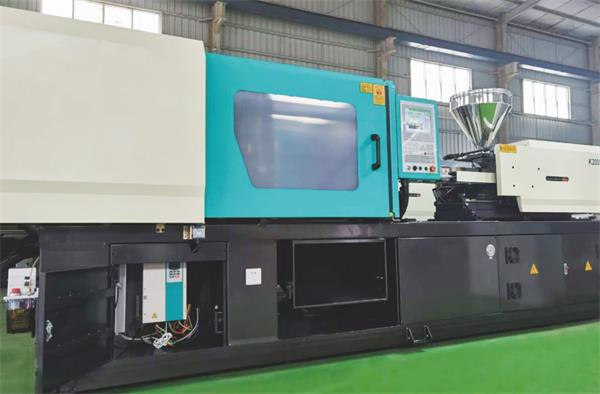

Application and solutions in the Injection molding machine industry

Views: 15 Author: Site Editor Publish Time: 2025-06-11 Origin: Site

Product features

The servo power system for injection molding machines covers a power range of 5.5-160kW, with system pressure covering various specifications such as 14MPa and 17.5MPa. The greatly increased system pressure (exceeding 20MPa), enriched bus interfaces, and optimized control solutions enable the entire system to achieve faster speed, higher precision, and more reliable and stable performance. The system can meet the performance requirements of high-speed machines (injection acceleration >0.5g, unloaded 0-2000rpm acceleration time of 25ms, loaded 450-2000rpm acceleration time of up to 50ms), all-electric injection molding machines, and hybrid oil-electric injection molding machines.

14MPa injection molding machine oil pump complete servo system configuration table

Pressure	Oil pump displacement	Motor		Servo drive
MPa	cc	Model	Parameter	Model	Parameter
14	32	EP18-70F17K	71Nm,1700rpm	ES600T032	15KW
14	40	EP18-70F17K	71Nm,1700rpm	ES600T032	15KW
14	50	EP18-88F17K	88Nm,1700rpm	ES600T037	18.5KW
14	63	EP18-105F17K	105Nm,1700rpm	ES600T045	22KW
14	80	EP18-148F17K	153Nm,1700rpm	ES600T060	30KW
14	100	EP18-168F17K	168Nm,1700rpm	ES600T075	37KW
14	125	EP25-218F17K	218Nm,1700rpm	ES600T091	45KW
14	160	EP25-286F17K	278Nm,1700rpm	ES600T112	55KW

17.5MPa injection molding machine oil pump complete servo system configuration table

17.5	32	EP18-70F17K	71Nm,1700rpm	ES600T032	15KW
17.5	40	EP18-88F17K	88Nm,1700rpm	ES600T037	18.5KW
17.5	50	EP18-120F17K	120Nm,1700rpm	ES600T045	22KW
17.5	63	EP18-153F17K	153Nm,1700rpm	ES600T060	30KW
17.5	80	EP18-168F17K	168Nm,1700rpm	ES600T075	37KW
17.5	100	EP25-236F17K	236Nm,1700rpm	ES600T091	45KW
17.5	125	EP25-286F17K	278Nm,1700rpm	ES600T112	55KW
17.5	160	EP25-344F17K	344Nm,1700rpm	ES600T150	75KW
