Availability: | |
---|---|

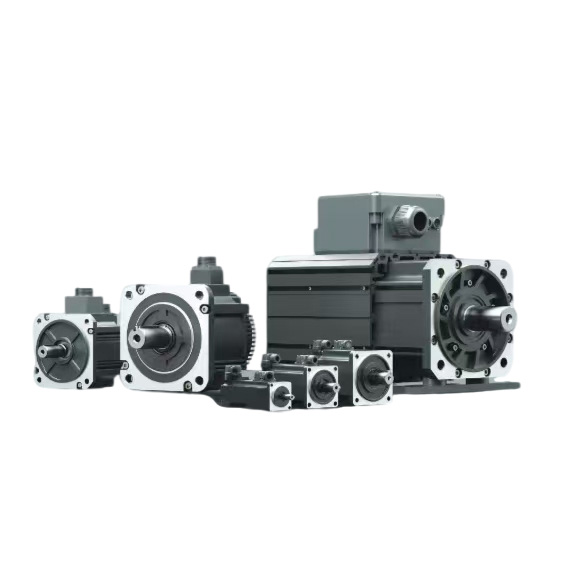

- Five-pair pole high-response servo motor:
- Motors of 60/80 specifications support plug-in Amp connectors and direct crimp connectors.
- In harsh environments such as humidity and dust, crimp connectors are recommended for use.
- 17-bit absolute encoder with 131,072 pulses per revolution,
- Capable of memorizing absolute positions for 65,535 revolutions.
- Supports magnetic encoders and optical encoders.
- When using a multi-turn absolute encoder, limit switches and home origin switches on equipment can be eliminated.
- Five-pair pole high-response servo motor:
- Motors of 60/80 specifications support plug-in Amp connectors and direct crimp connectors.
- In harsh environments such as humidity and dust, crimp connectors are recommended for use.
- 17-bit absolute encoder with 131,072 pulses per revolution,
- Capable of memorizing absolute positions for 65,535 revolutions.
- Supports magnetic encoders and optical encoders.
- When using a multi-turn absolute encoder, limit switches and home origin switches on equipment can be eliminated.

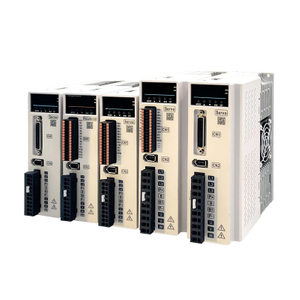

Motor Specification Parameters | Matching Driver | ||||
Model | Rated Power (kW) | Rated Current (A) | Rated Torque (N.M) | RatedSpeed (r/min) | Model |
DM4-W04M01S30 | 0.1 | 0.9 | 0.32 | 3000 | PS700-S0R1 |
DM4-W06M02S30 | 0.2 | 1.2 | 0.64 | 3000 | PS700-SOR2 |
DM4-W06M04S30 | 0.4 | 2.8 | 1.27 | 3000 | PS700-SOR4 |
DM4-W06M06S30 | 0.6 | 4 | 1.91 | 3000 | PS700-SOR7 |
DM4-W08M07S30 | 0.75 | 4.6 | 2.39 | 3000 | PS700-SOR7 |
DM4-W08M10S30 | 1 | 5.5 | 3.2 | 3000 | PS700-S1R0 |
DM4-W13L13S25 | 1.3 | 7 | 5 | 2500 | PS700-S1R3 |
DM4-W11M13S30 | 8 | 5 | 3000 | ||
DM4-W13L15S25 | 1.5 | 7 | 6 | 2500 | PS700-S1R5 |
DM4-W11M15S30 | 8 | 6 | 3000 | ||
DM4-W13L15S15 | 9.5 | 10 | 1500 | ||
DM4-W13L22S25 | 2.2 | 9.5 | 8.34 | 2500 | PS700-S2R3 |
DM4-13M23S15 | 2.3 | 9.5 | 15 | 1500 | |
DM4-W13L30S25 | 3 | 12 | 11.5 | 2500 | PS700-S3R0 |
DM4-13M38S25 | 3.8 | 13.5 | 15 | 2500 | PS700-S3R8L |
DM4-18M30S15 | 3 | 12 | 19 | 1500 | |
DM4-W13L13T25 | 1.3 | 4.5 | 5 | 2500 | PS700-T1R3 |
DM4-W13L15T25 | 1.5 | 4.5 | 6 | 2500 | PS700-T1R5 |
DM4-W13L15T15 | 1.5 | 8 | 10 | 1500 | |
DM4-W13L22T25 | 2.2 | 5.8 | 8.34 | 2500 | PS700-T2R3 |
DM4-13M23T15 | 2.3 | 5 | 15 | 1500 | |
DM4-W13L30T25 | 3 | 8.5 | 11.5 | 2500 | PS700-T3RO |
DM4-13M38T25 | 3.8 | 9.5 | 15 | 2500 | PS700-T3R8 |
DP5-18M30T15 | 3 | 7.5 | 19 | 1500 | |
DP5-18M43T15 | 4.3 | 10 | 28 | 1500 | PS700-T4R5 |
DP5-18M45T20 | 4.5 | 9.5 | 21.5 | 2000 | |
DP5-18M55T15 | 5.5 | 12 | 35 | 1500 | PS700-T5R5 |
DP5-18M75T15 | 7.5 | 20 | 48 | 1500 | PS700-T7R5 |
Instructions:
1. The above table is a common motor configuration table. For other specification requirements, please contact the manufacturer's sales and service personnel.
2. Motor insulation class: F
3. Conventional motor protection class: IP65
4. Operating environment: -20°C to +40°C, humidity <90%
5. Other working conditions: Indoor, no corrosive gases, no flammable or explosive substances.
Motor Specification Parameters | Matching Driver | ||||
Model | Rated Power (kW) | Rated Current (A) | Rated Torque (N.M) | RatedSpeed (r/min) | Model |
DM4-W04M01S30 | 0.1 | 0.9 | 0.32 | 3000 | PS700-S0R1 |
DM4-W06M02S30 | 0.2 | 1.2 | 0.64 | 3000 | PS700-SOR2 |
DM4-W06M04S30 | 0.4 | 2.8 | 1.27 | 3000 | PS700-SOR4 |
DM4-W06M06S30 | 0.6 | 4 | 1.91 | 3000 | PS700-SOR7 |
DM4-W08M07S30 | 0.75 | 4.6 | 2.39 | 3000 | PS700-SOR7 |
DM4-W08M10S30 | 1 | 5.5 | 3.2 | 3000 | PS700-S1R0 |
DM4-W13L13S25 | 1.3 | 7 | 5 | 2500 | PS700-S1R3 |
DM4-W11M13S30 | 8 | 5 | 3000 | ||
DM4-W13L15S25 | 1.5 | 7 | 6 | 2500 | PS700-S1R5 |
DM4-W11M15S30 | 8 | 6 | 3000 | ||
DM4-W13L15S15 | 9.5 | 10 | 1500 | ||
DM4-W13L22S25 | 2.2 | 9.5 | 8.34 | 2500 | PS700-S2R3 |
DM4-13M23S15 | 2.3 | 9.5 | 15 | 1500 | |
DM4-W13L30S25 | 3 | 12 | 11.5 | 2500 | PS700-S3R0 |
DM4-13M38S25 | 3.8 | 13.5 | 15 | 2500 | PS700-S3R8L |
DM4-18M30S15 | 3 | 12 | 19 | 1500 | |
DM4-W13L13T25 | 1.3 | 4.5 | 5 | 2500 | PS700-T1R3 |
DM4-W13L15T25 | 1.5 | 4.5 | 6 | 2500 | PS700-T1R5 |
DM4-W13L15T15 | 1.5 | 8 | 10 | 1500 | |
DM4-W13L22T25 | 2.2 | 5.8 | 8.34 | 2500 | PS700-T2R3 |
DM4-13M23T15 | 2.3 | 5 | 15 | 1500 | |
DM4-W13L30T25 | 3 | 8.5 | 11.5 | 2500 | PS700-T3RO |
DM4-13M38T25 | 3.8 | 9.5 | 15 | 2500 | PS700-T3R8 |
DP5-18M30T15 | 3 | 7.5 | 19 | 1500 | |
DP5-18M43T15 | 4.3 | 10 | 28 | 1500 | PS700-T4R5 |
DP5-18M45T20 | 4.5 | 9.5 | 21.5 | 2000 | |
DP5-18M55T15 | 5.5 | 12 | 35 | 1500 | PS700-T5R5 |
DP5-18M75T15 | 7.5 | 20 | 48 | 1500 | PS700-T7R5 |
Instructions:
1. The above table is a common motor configuration table. For other specification requirements, please contact the manufacturer's sales and service personnel.
2. Motor insulation class: F
3. Conventional motor protection class: IP65
4. Operating environment: -20°C to +40°C, humidity <90%
5. Other working conditions: Indoor, no corrosive gases, no flammable or explosive substances.
