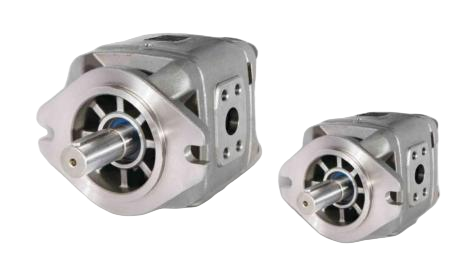

Internal Gear Pump

Technical overview

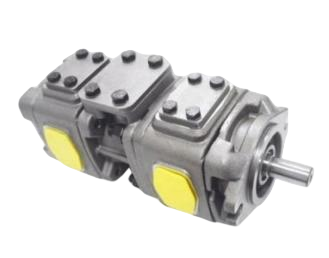

*The duplex pump integrates two individual pump units.

*Featuring one shared inlet port and two independentoutlet port.
*Converting to one shared outlet flange is feasible.*Through modular combination of pump series, multipledisplacement configurations are available to meetvarying operational demands.

Brand:
EPSIVO

Availability:



Inquire

Product Description

Product featuring

1. The front and rear oil pumps adopt a floating spline coupling structure, paired with a proprietarygrease formulation to ensure stable performance, extended service life, and low noise operation.

2. The maximum displacement can be expanded to 320CC,the system offers extensive options formotor/driver selection and pump model matching to meet diverse application requirements.

3.The pump features adjustable inlet/outlet port orientations, incorporating a common inlet interface tosimplify installation and enhance operational convenience.

4.Arbitrary displacement combinations to meet diverse operational requirements.

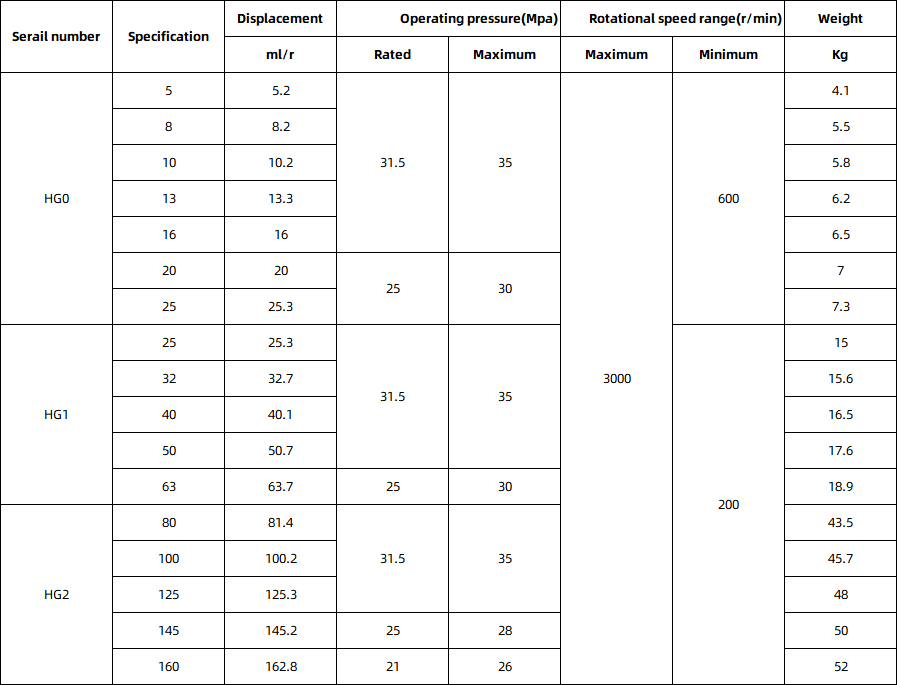

Performance parameters
