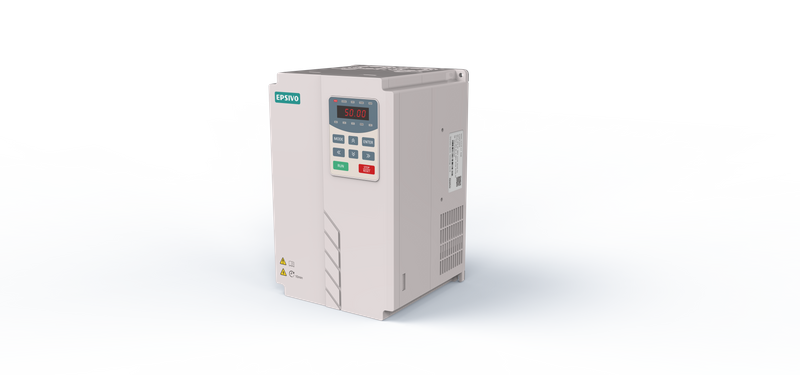

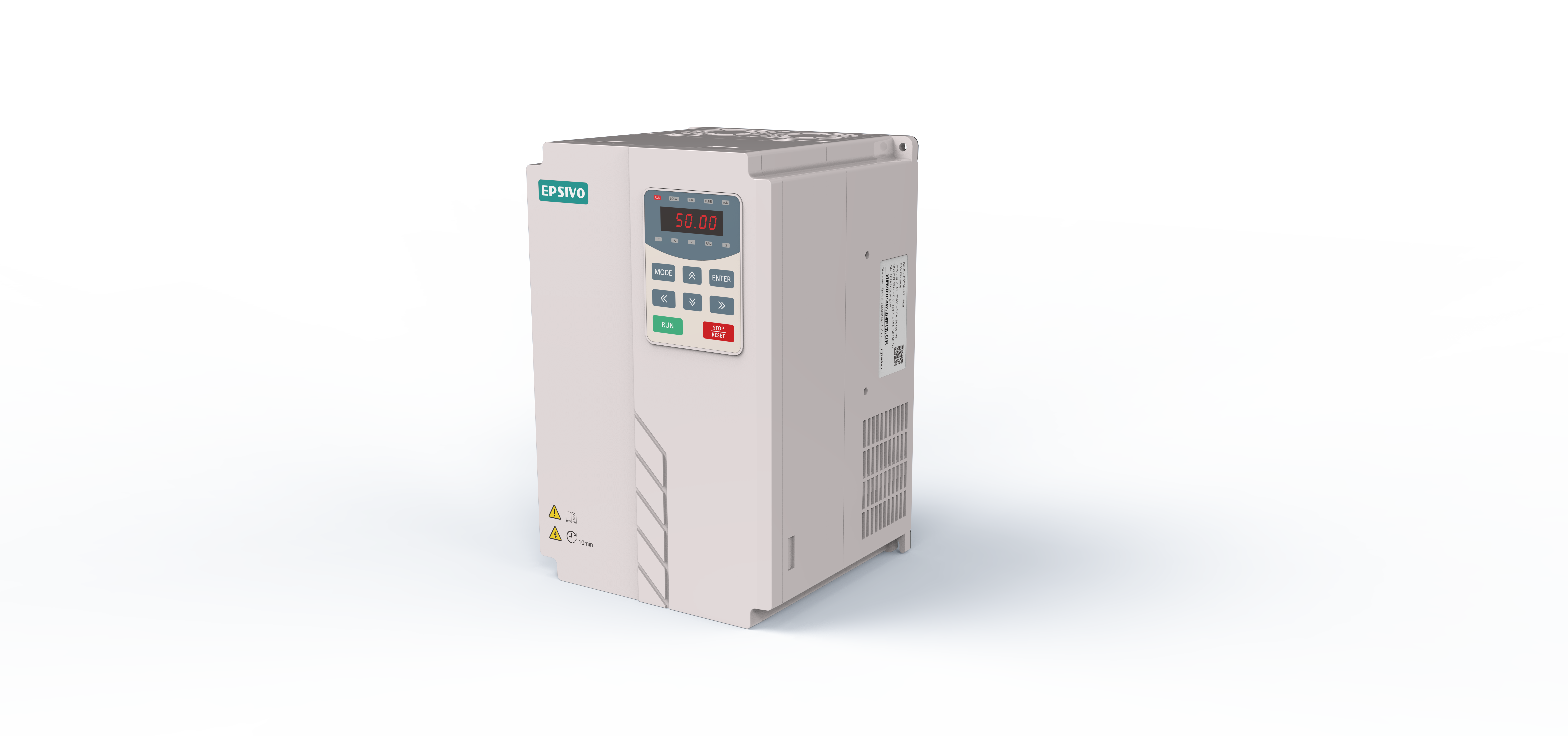

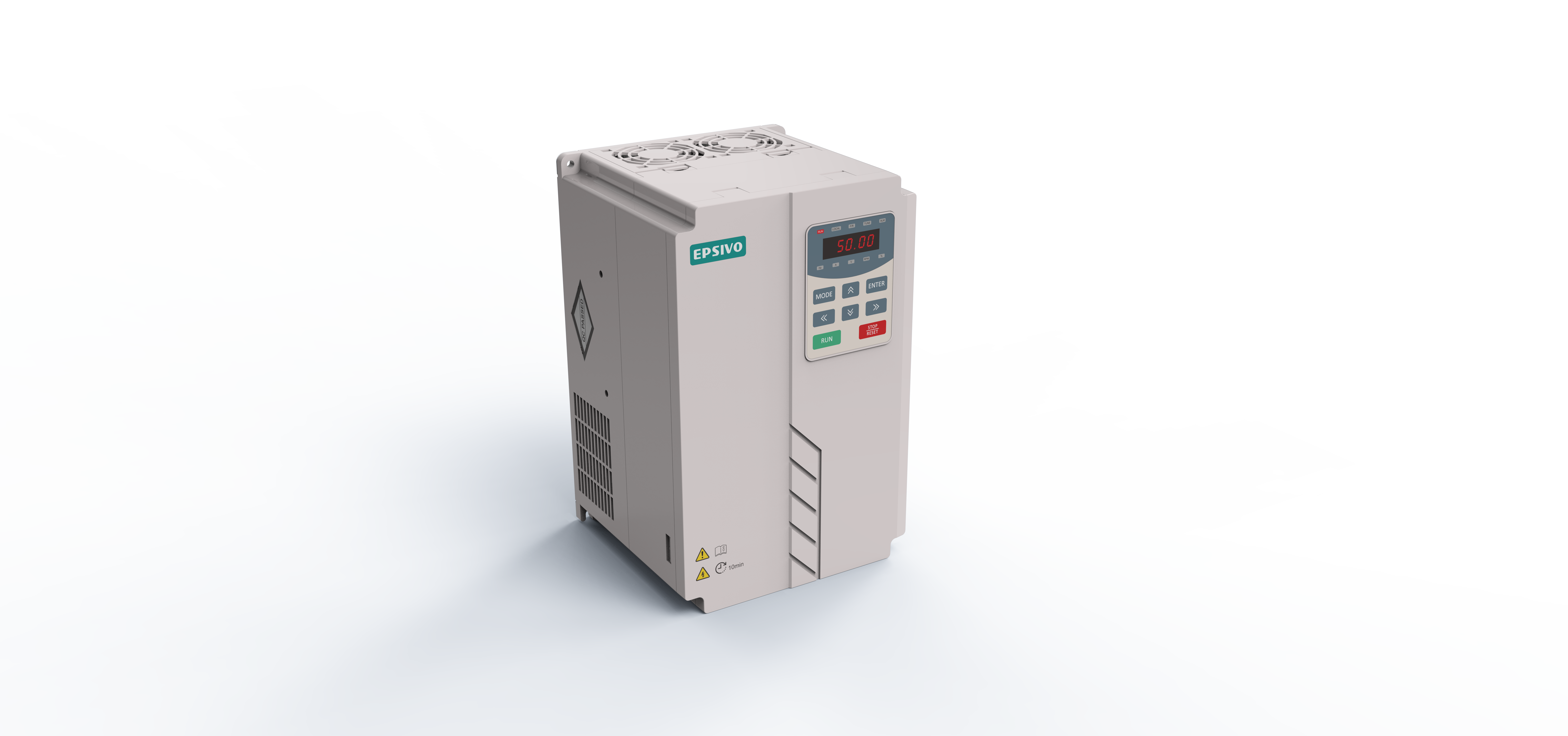

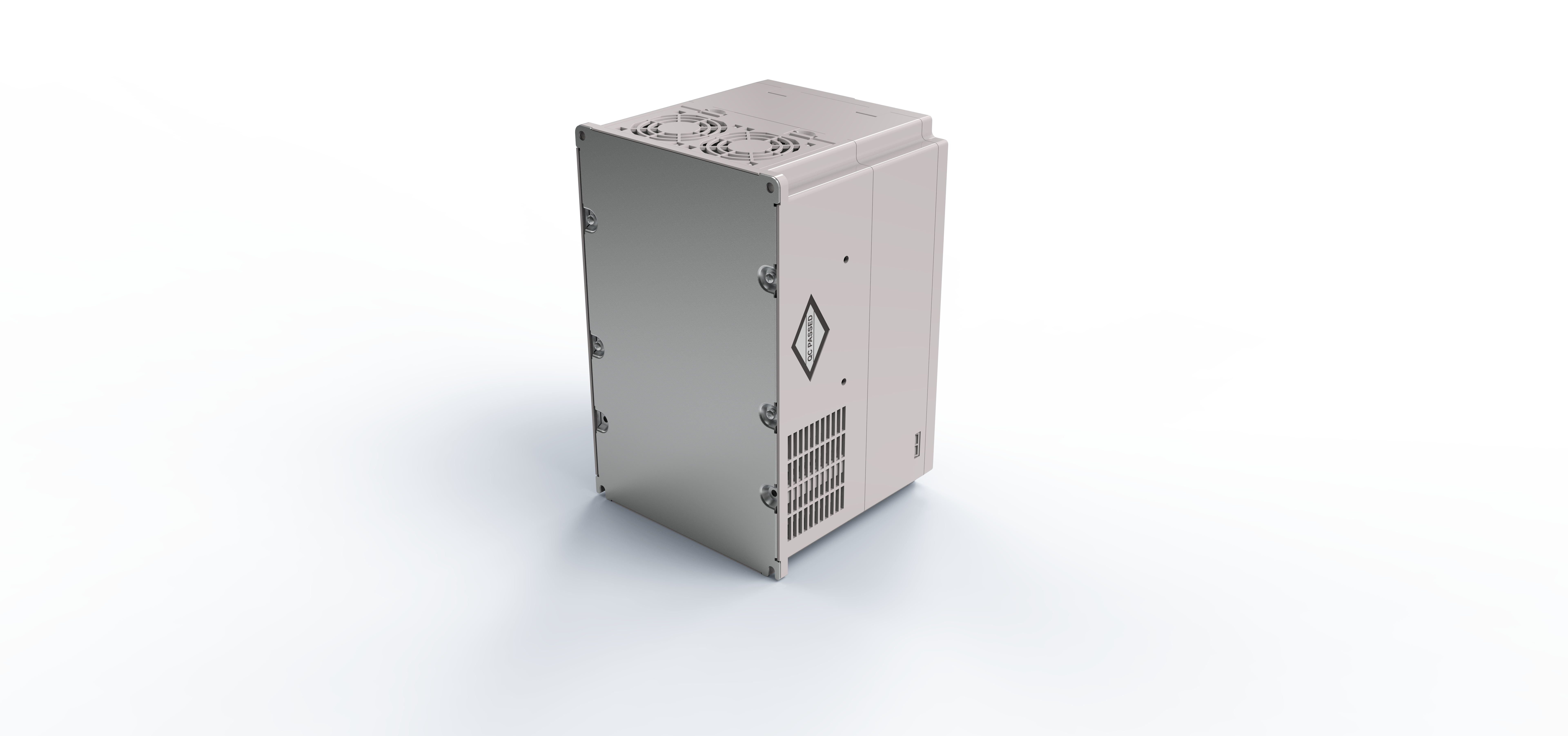

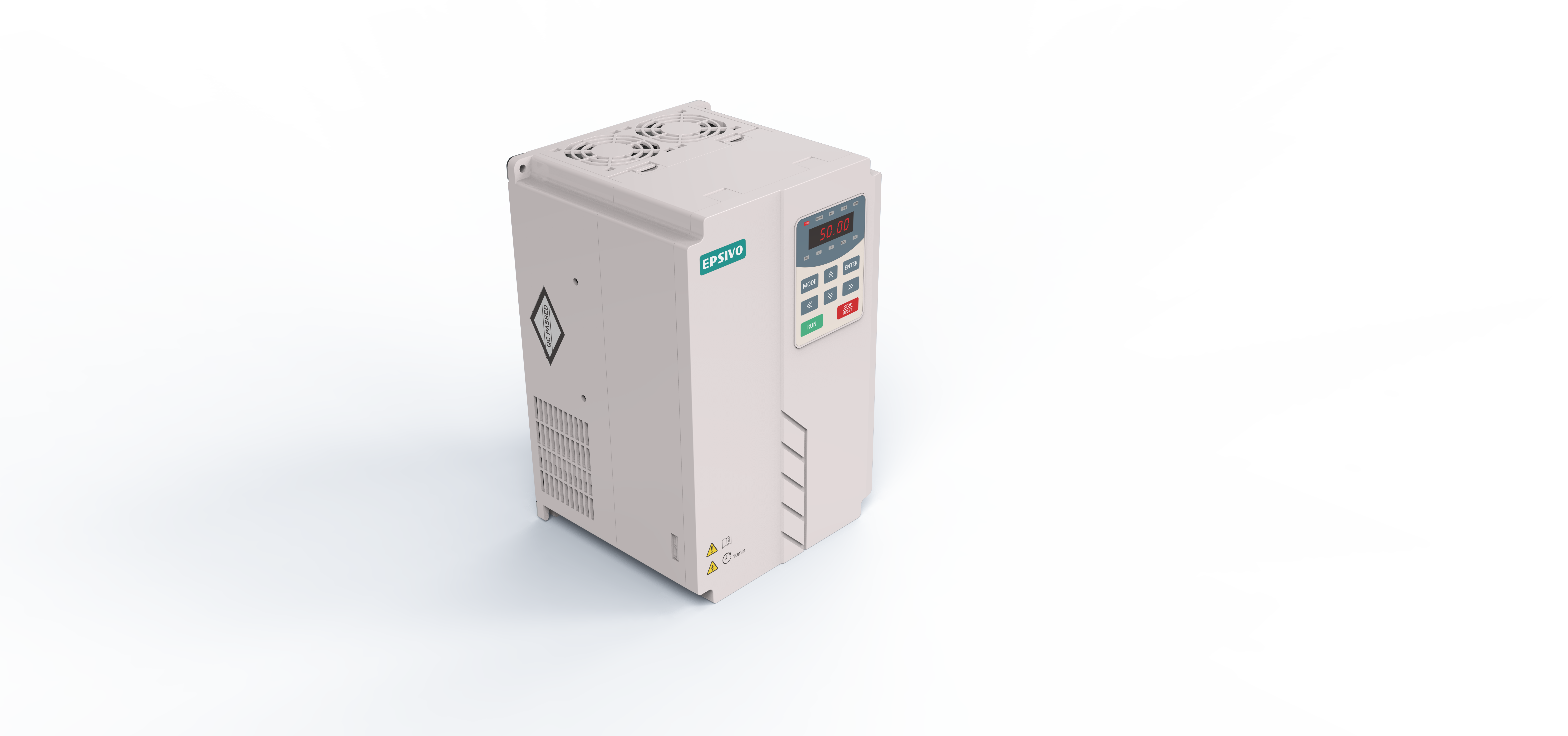

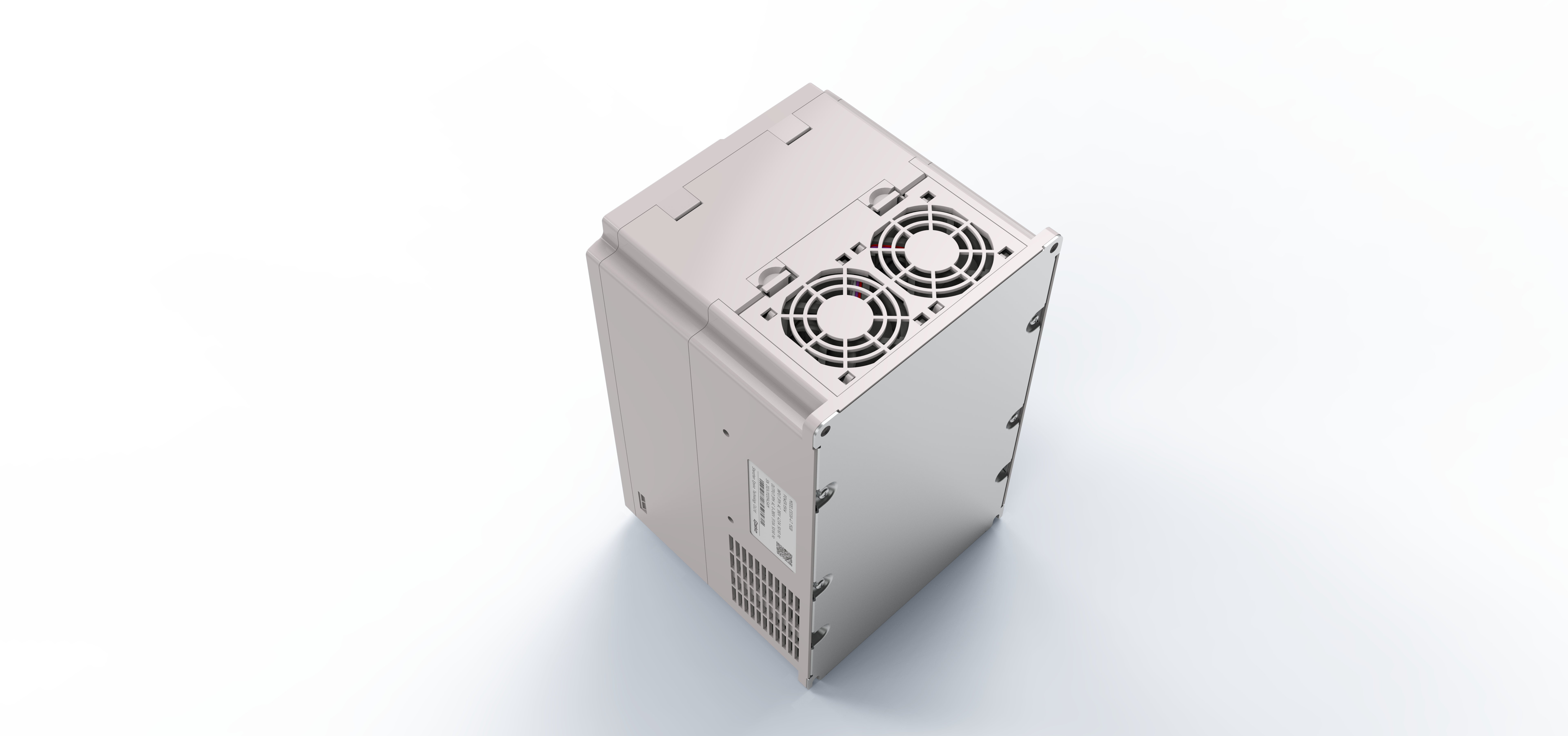

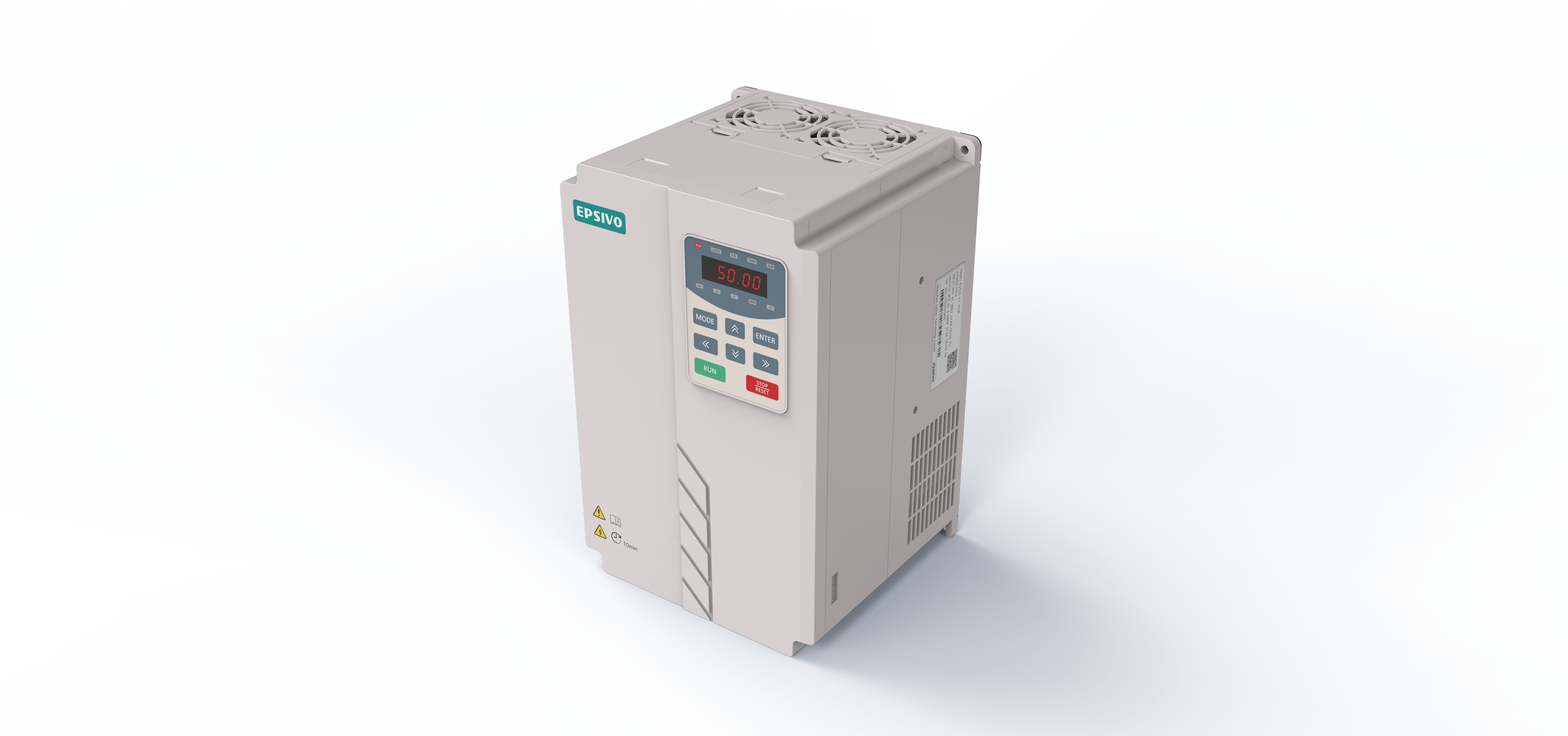

The Epsivo ES630 series are high-performance drives tailor-made for injection molding machines. Adopting closed-loop vector control technology, it precisely meets the full working condition requirements of injection molding machines such as mold clamping, injection, pressure holding and cooling. Featuring outstanding energy saving and operational stability, it is an ideal choice for injection molding equipment upgrading.

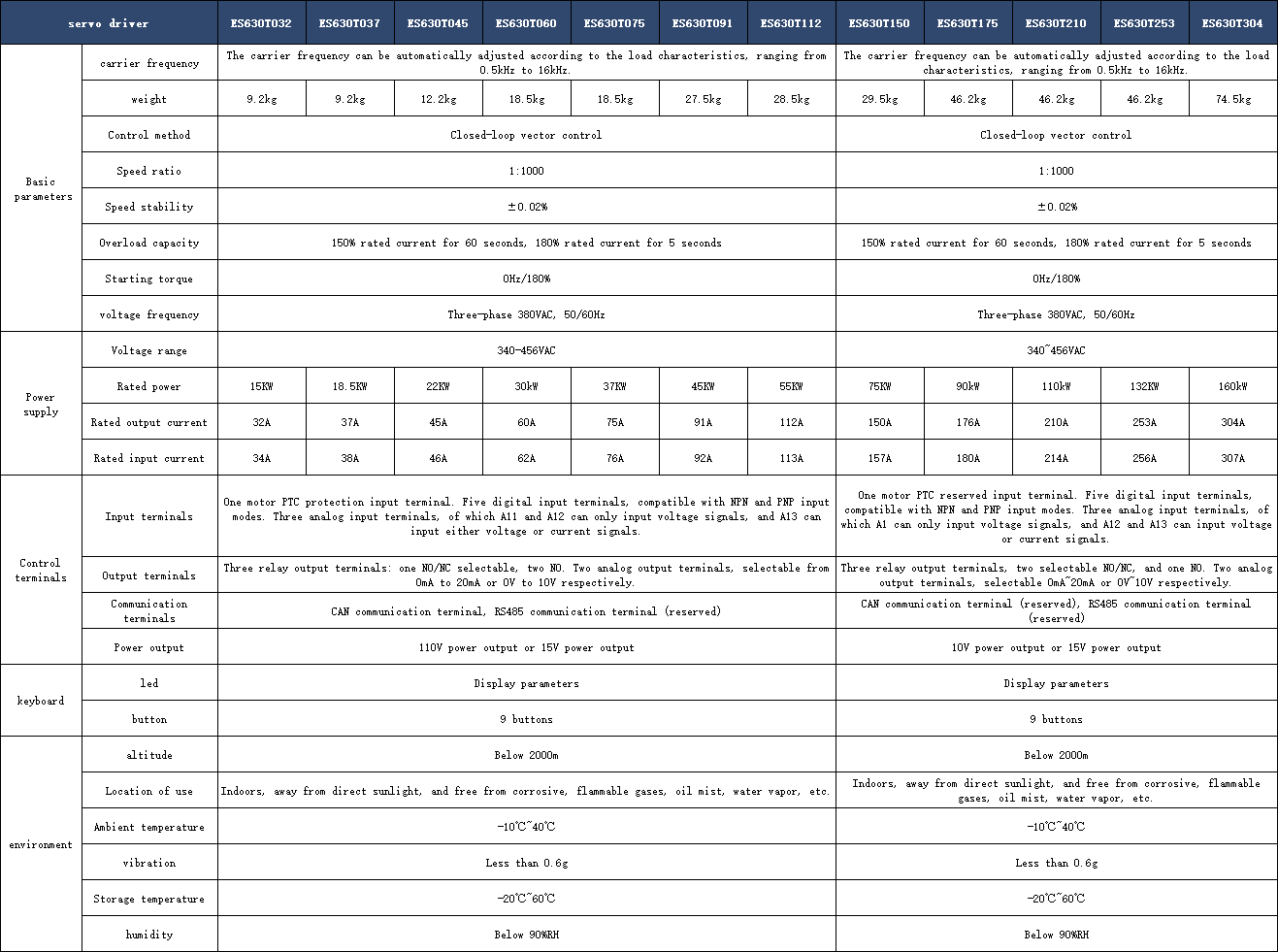

This drive delivers superior control accuracy with speed regulation accuracy up to ±0.02%. It can output 180% rated torque at 0Hz, featuring fast start-up and rapid response to ensure the molding precision and consistency of finished products. It boasts strong overload capacity, supporting 150% rated current operation for 60 seconds and 180% rated current operation for 5 seconds. It adapts to frequent start-stop and impact load of injection molding machines with stable and reliable operation.

It is equipped with flexible interface configuration. Analog and digital input/output can be freely switched via DIP switches, compatible with voltage and current signals, and suitable for multi-brand injection molding machine systems with easy installation and commissioning. It has excellent protection performance and environmental adaptability, capable of stable operation at ambient temperature from -20℃ to 60℃ and relative humidity below 90% RH, adapting to complex workshop conditions with good oil pollution resistance and vibration resistance.

The whole machine features compact structure and standardized installation dimensions, suitable for retrofitting and supporting of various machine models. It effectively reduces energy consumption and operation & maintenance costs, and comprehensively improves the operating efficiency of injection molding machines and the quality of molded products.
