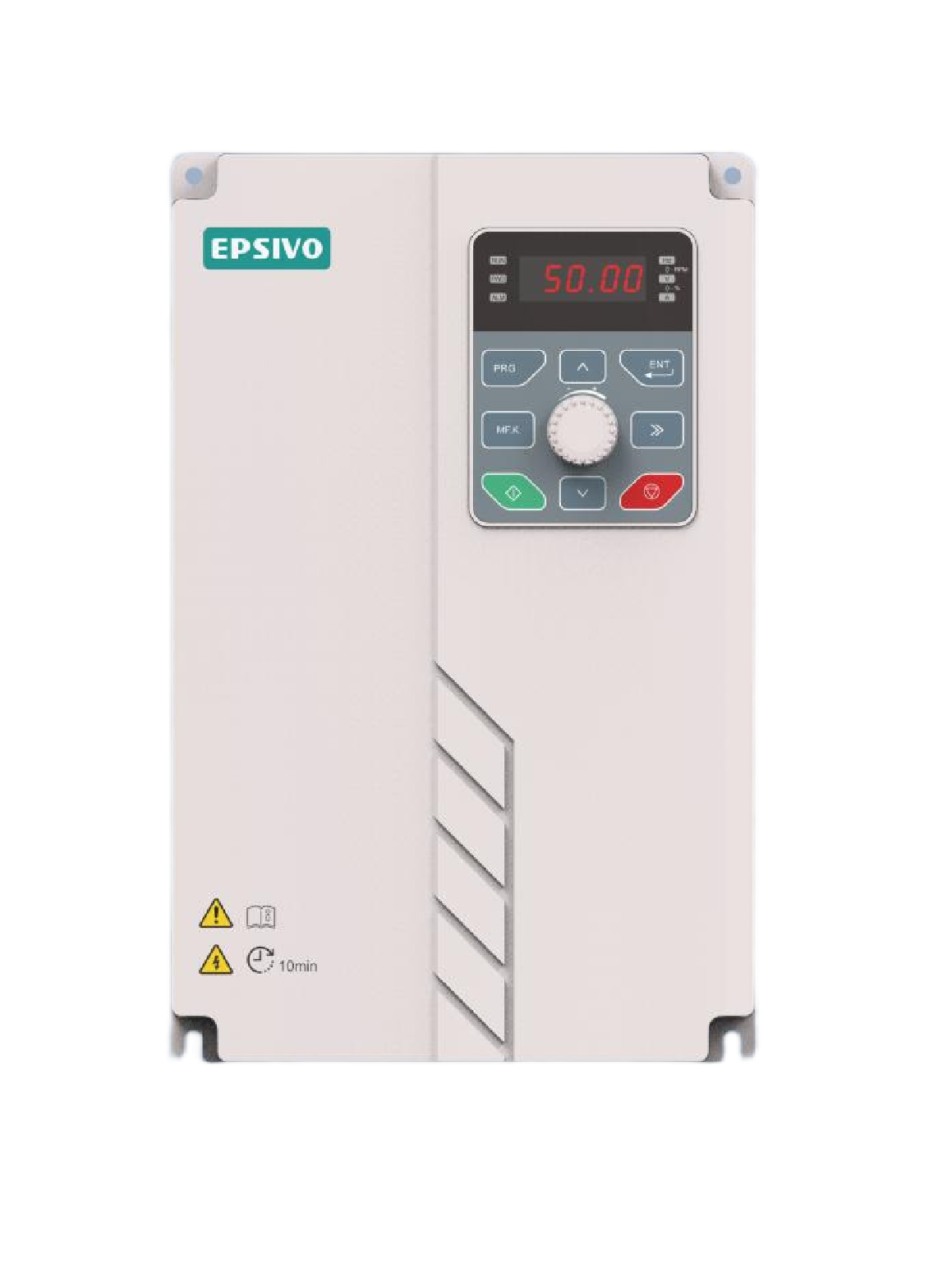

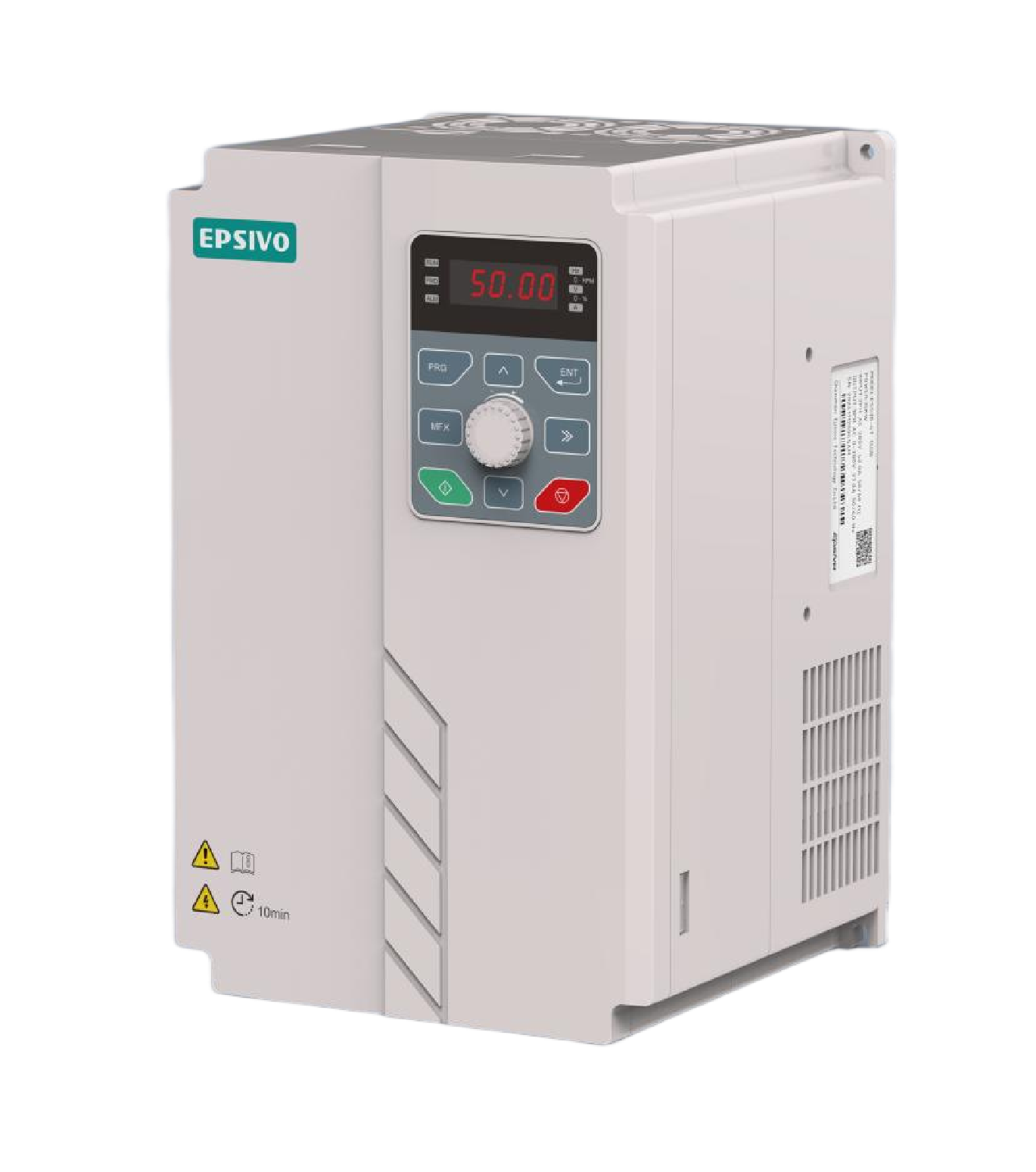

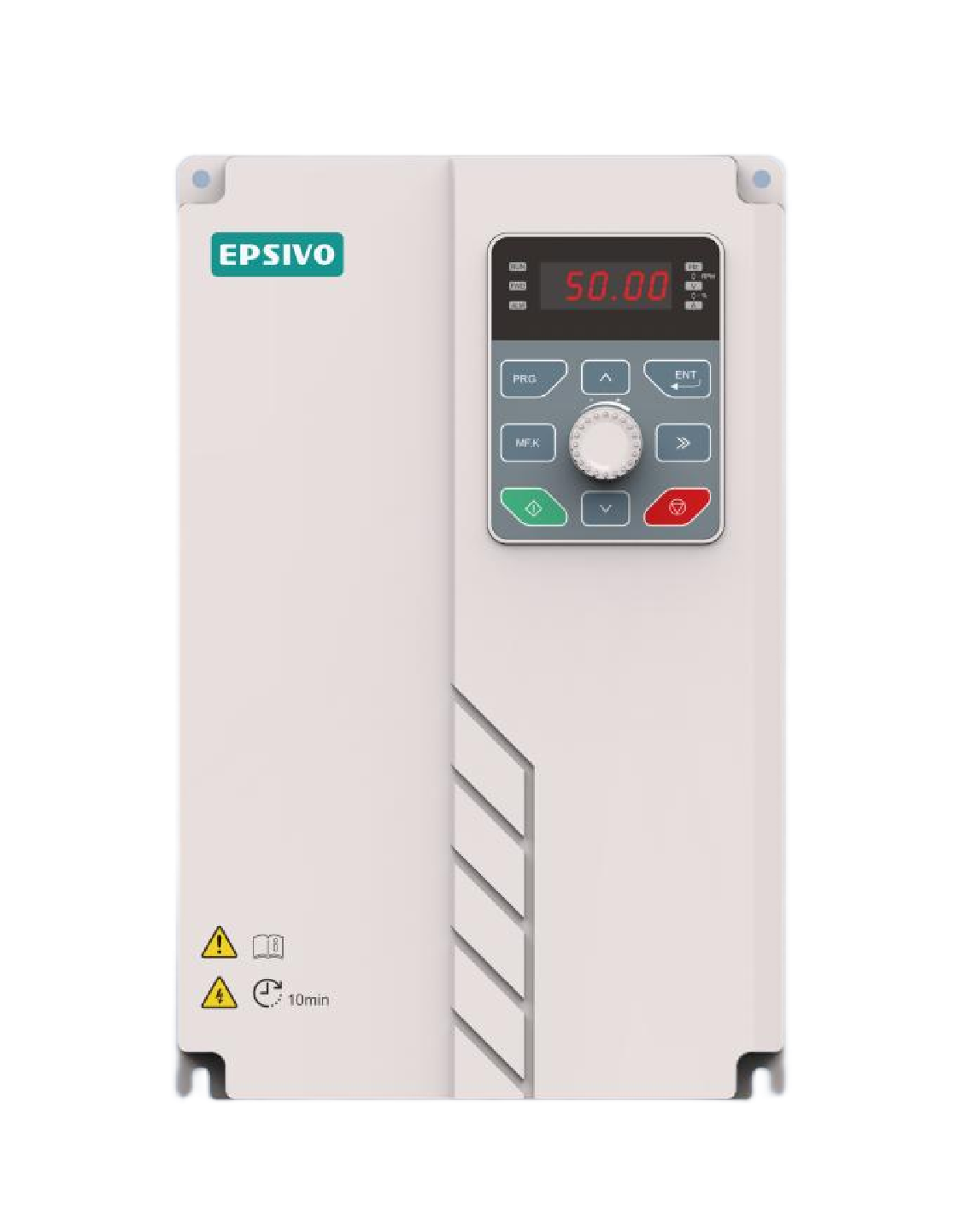

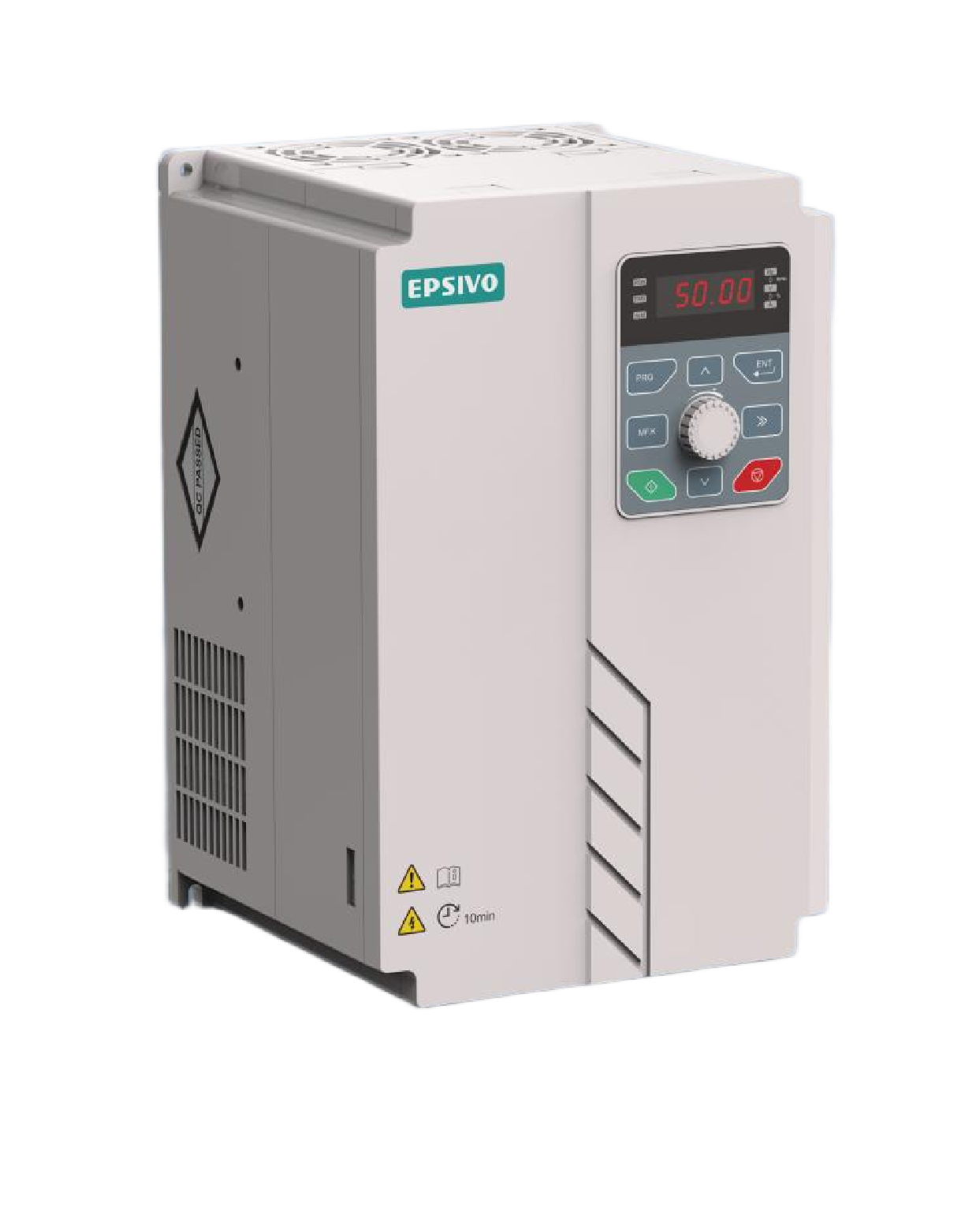

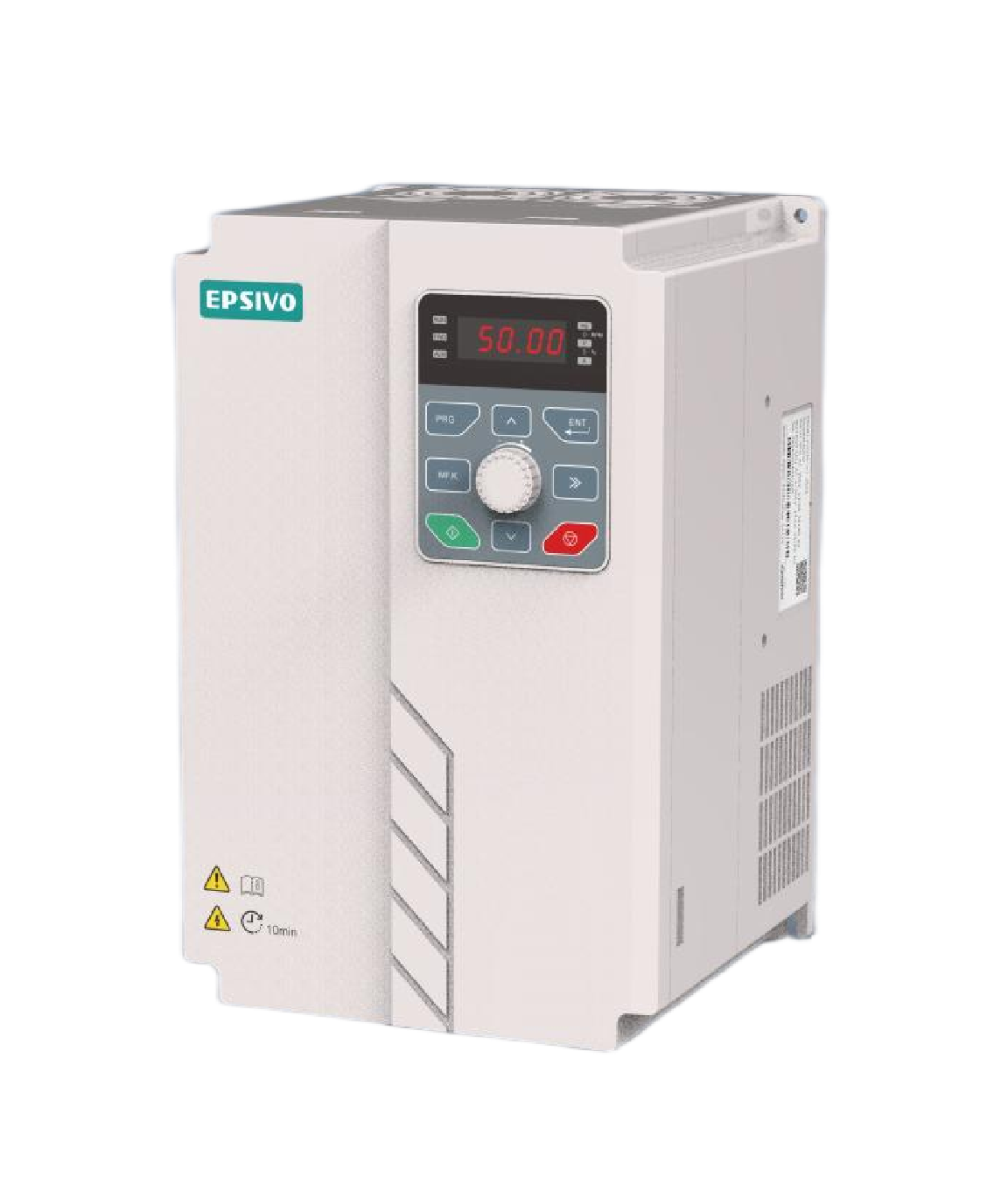

The ES530 series high-performance vector inverter features compact structure and small size, supporting wall-through mounting with an independent heat dissipation duct for efficient cooling.

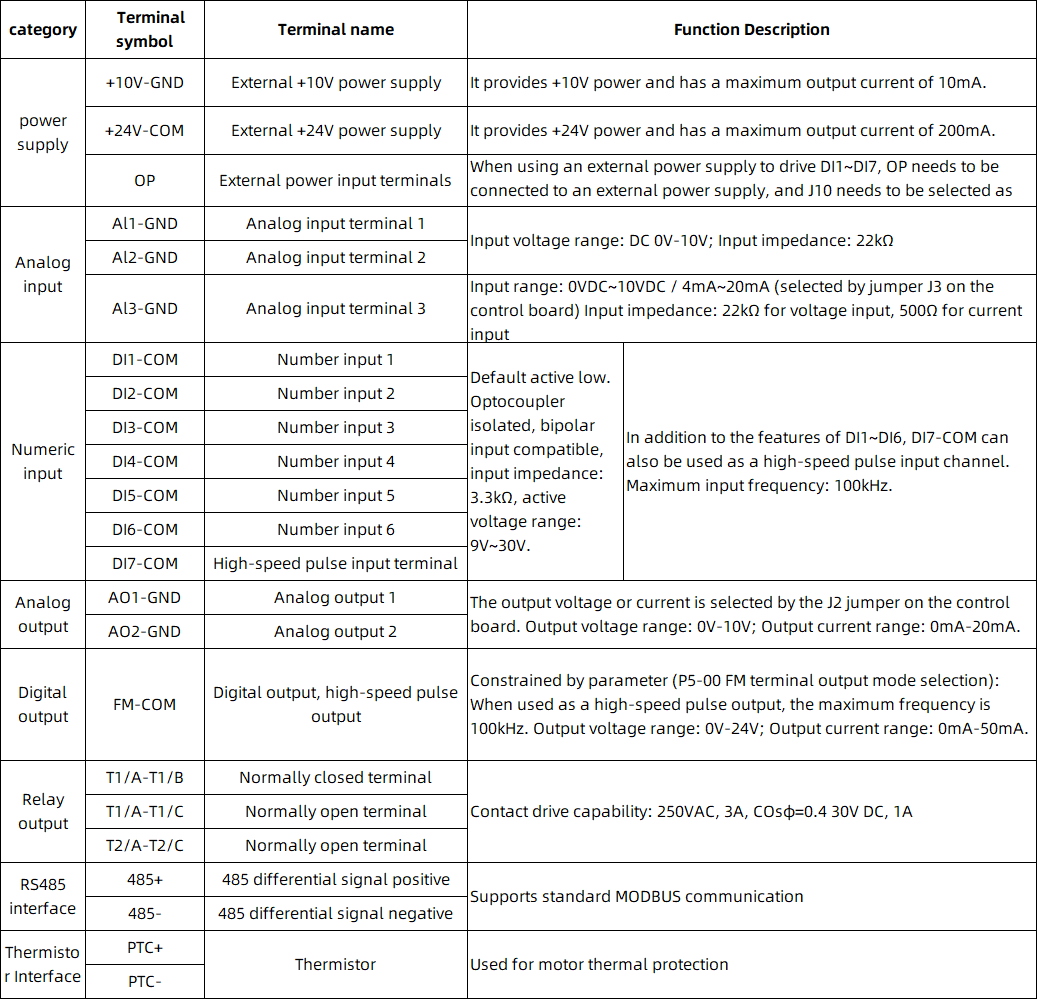

It is equipped with abundant interfaces, compatible with resolver/differential PG cards and external remote keypads. Analog input and output can be switched via jumpers, and power supplies for digital inputs are flexibly selectable.

Built-in RS485 and Ethernet ports support MODBUS and EtherCAT protocols. It is fitted with thermistor protection and relay output, boasting flexible application, comprehensive functions as well as high safety and reliability.
