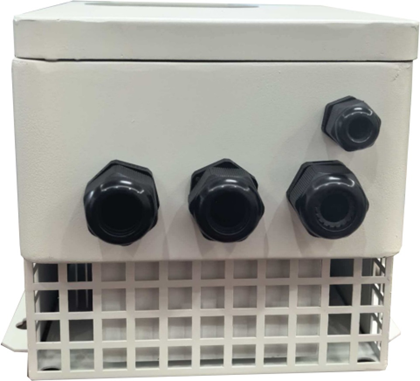

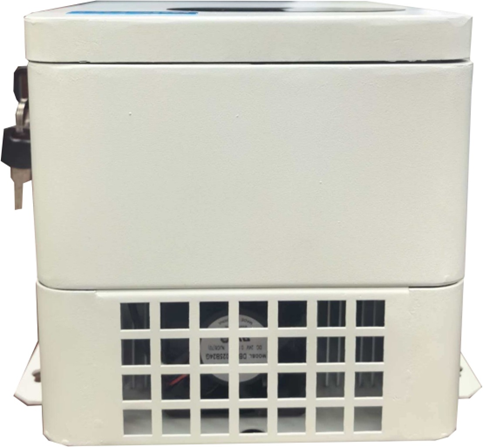

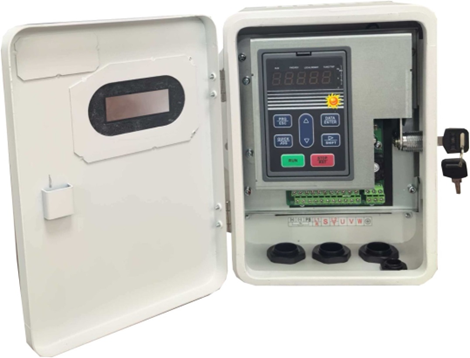

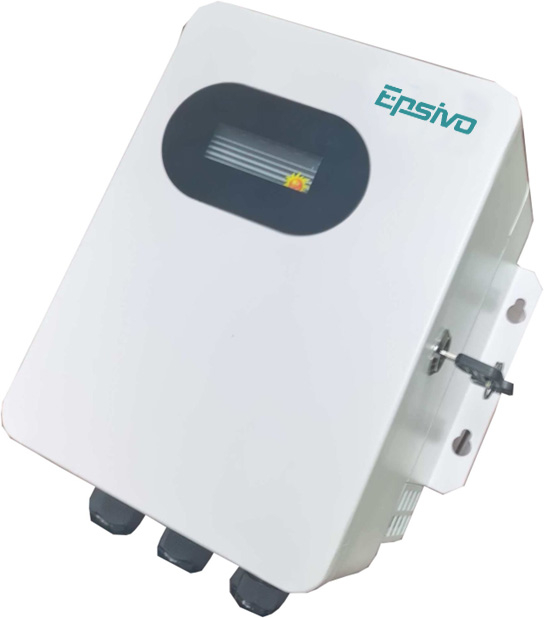

IP65 Series Solar Pump Inverter

The IP65 Series is a highly protected solar pump inverter specifically designed to meet the demands of photovoltaic water pumping applications.
Equipped with a built-in Maximum Power Point Tracking (MPPT) algorithm, it ensures highly efficient energy utilization. The inverter features specialized protection functions, including weak-light sleep and wake-up, under-frequency protection, full-tank protection, and dry-run protection. It comes standard with Modbus communication. Additionally, the built-in hardware protections against output phase loss and ground short circuits effectively enhance the reliability and safety of the system.

Model:
SP300
Brand:
EPSIVO

Availability:



Inquire

1、Direct Drive Compatibility: Supports direct drive for single-phase motors (no need to remove the starting capacitor) and is also compatible with 3-phase 220V motors.

2、IP65 Protection: Features an IP65-rated enclosure for quick and easy installation. It is highly durable and adaptable to various harsh outdoor environments.

3、Low-Voltage Startup & Wide Input Range: Designed with a low-voltage startup capability and a wide input voltage range, making it compatible with a broader variety of solar panel types and string configurations.

4、Comprehensive Protection & User-Friendly: Offers all-around protection features, including fault self-diagnostics for dry-run, weak light, and full-tank conditions. Equipped with motor soft-start and speed control functions, it provides complete functionality, simple operation, and convenient installation.

5、Dual Input (DC/AC): Supports both DC and AC inputs. The AC output is compatible with various standard AC water pumps. In the absence of solar power or when sunlight is too weak to drive the pump, the inverter can automatically switch to single-phase or three-phase AC input from a generator or grid power.
